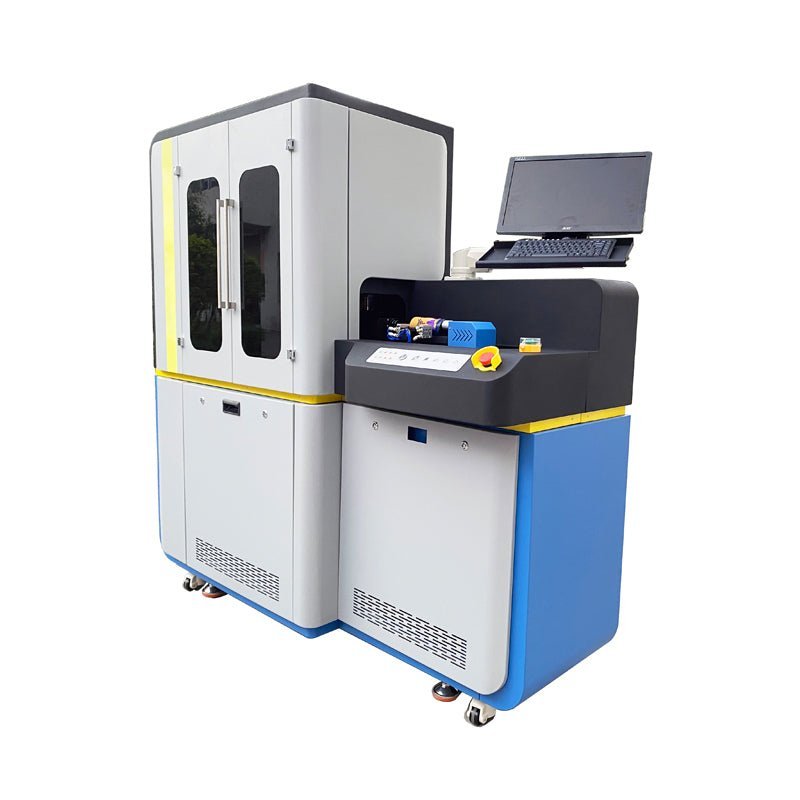

A high-speed cylindrical UV printer is an industrial-grade device specifically designed for curved/irregular workpieces (such as cylinders and cones). It integrates UV curing technology to achieve high-speed, high-precision printing. This equipment addresses the limitation of traditional flatbed printers, which cannot stably print on curved surfaces, and meets mass production needs through its "high-speed" design. It is widely used in industries like packaging, gifting, electronics, and beauty.
I. Core Definition & Technical Principles
To understand its essence, we need to break down three core elements: "high-speed", "cylindrical (curved surface adaptation)", and "UV printing":
-
Cylindrical (Curved Surface Adaptation)
Unlike traditional flatbed printers with fixed platforms, this type of equipment is equipped with a rotary workpiece fixture (e.g., servo-motor-driven rollers or chucks). It can drive cylindrical workpieces (such as glass bottles, insulated mugs, pen barrels, and lipstick tubes) to rotate at a constant speed. Coordinated with the vertical movement of the print head, it enables "360° dead-angle-free" curved surface printing. It can even be compatible with slightly irregular workpieces like cones and polygonal prisms. -
UV Printing (Instant Curing)
It uses UV-curable inks (containing photosensitive resin components). After the print head accurately ejects ink onto the workpiece surface, the device’s built-in UV lamps (usually LED-UV lamps) immediately irradiate the ink, curing it quickly within 0.1–1 second (no need to wait for natural drying). This technology not only prevents ink from flowing or smudging on curved surfaces but also enhances the pattern’s adhesion, scratch resistance, and weather resistance (waterproof and UV-resistant). -
High-Speed (Efficiency Optimization)
"High-speed" is mainly achieved through two aspects:- Hardware Upgrade: Adopts industrial-grade high-speed print heads (e.g., Ricoh G5/G6, Epson I3200). A single print head can reach a printing speed of 30–60 meters per hour, and some multi-head models can further improve efficiency.
- Process Optimization: Supports a semi-automatic/fully automatic workflow of "batch loading → automatic positioning → continuous printing → synchronous curing → automatic unloading". This reduces time spent on manual intervention and is suitable for mass production scenarios with thousands of pieces per day (e.g., printing on cosmetic bottles and beverage cans).
II. Core Structural Components
The structure of a high-speed cylindrical UV printer is designed around "stable curved surface printing + high-speed curing" and mainly includes 5 modules:
| Core Module | Function & Role |
|---|---|
| Workpiece Conveyance System | Includes rotary fixtures and conveyor belts/indexing tables. It fixes the workpiece and drives it to rotate at a constant speed (rotational speed can be precisely adjusted to match printing speed). |
| Print Head Module | Equipped with 1–4 industrial-grade UV print heads, supporting multi-color printing (e.g., CMYK + white ink + varnish) for gradient colors and high-definition patterns. |
| UV Curing System | Usually an LED-UV lamp set (low energy consumption, low heat generation). Installed behind the print head, it cures the ink immediately after ejection to prevent pattern displacement. |
| Positioning & Calibration System | Equipped with vision cameras/sensors to automatically identify the workpiece size and position, and calibrate the distance between the print head and the workpiece (avoiding missing prints or blurry prints). |
| Control System | Equipped with dedicated printing software (e.g., self-developed systems by brands like Yuchai and Handtop). It supports importing AI/PS format files and setting parameters such as printing precision, speed, and curing intensity. |
III. Key Advantages (vs. Traditional Printing)
Compared with traditional cylindrical printing technologies like screen printing and heat transfer, the core advantages of high-speed cylindrical UV printers lie in "high precision + high efficiency + high flexibility":
| Comparison Dimension | High-Speed Cylindrical UV Printer | Traditional Screen Printing | Traditional Heat Transfer |
|---|---|---|---|
| Printing Precision | 300–1200 DPI (supports HD photos, fine text) | 200–300 DPI (prone to screen lines) | 300–600 DPI (blurry edges likely) |
| Production Efficiency | 100–300 pieces/hour (automated, batch printing) | 50–100 pieces/hour (screen making required) | 80–150 pieces/hour (transfer film making required) |
| Color Flexibility | Supports multi-color gradients & on-demand printing (no plate fee) | Requires corresponding color plates (high cost for multi-colors) | Requires custom transfer films (troublesome to change colors) |
| Workpiece Compatibility | Diameter 5–200 mm (cylinders, cones, polygons) | Only fits fixed diameters (fixture replacement needed) | Narrow adaptation range (prone to wrinkling) |
| Post-Processing | No additional drying (UV instant curing) | Requires air-drying/baking (time-consuming) | Requires heat lamination (prone to residual glue) |
IV. Typical Application Scenarios
Due to its characteristics of "high speed + curved surface adaptation + high precision", this equipment is mainly used in industries that require mass production and high appearance standards:
- Packaging Industry: Printing logos and patterns on glass bottles (beverages, liquor), plastic bottles (cosmetics, skincare products), and metal cans (tea, snacks).
- Gifting Industry: Personalized customization of insulated mugs, ceramic mugs, and pen barrels (e.g., corporate logos, holiday patterns).
- Electronics Industry: Printing brand logos and textures on cylindrical casings (e.g., power bank shells, earphone cases).
- Daily Chemical Industry: Printing high-definition patterns and product information on lipstick tubes, perfume bottles, and shampoo sample bottles.
In summary, high-speed cylindrical UV printers are an upgraded solution for traditional curved surface printing. Their core value lies in balancing "mass production efficiency" and "high-definition printing quality", making them one of the key devices for product appearance upgrading in the current packaging, gifting, and other industries.
